1500mm Heavy Duty Drawer Slide

1500mm Heavy Duty Drawer Slide

-- Load rating: 227kg/pair(18")450mm
-- Extension: 100% full time extension
-- Material: hardened cold rolled steel
--Feature: with lock function
-- Width: 76 mm
-- Steel plate thickness: 2.5*2.5*2.5mm

Heavy Duty Slides are a versatile and reliable solution designed to handle loads ranging from 170 to 600 lbs. They offer unique features such as lock-in/lock-out capabilities and are available in both disconnect and non-disconnect options, providing flexibility for various applications.
A heavy-duty drawer slide can support heavyweight loads and allow horizontal movement for accessibility. Heavy-duty drawer slides can support 170 lbs. above load capacity and withstand thousands of sliding cycles.
Besides the weight capacity, many facets compose a heavy-duty drawer slide. These dimensions and features determine the best application for the heavy-duty drawer slide.

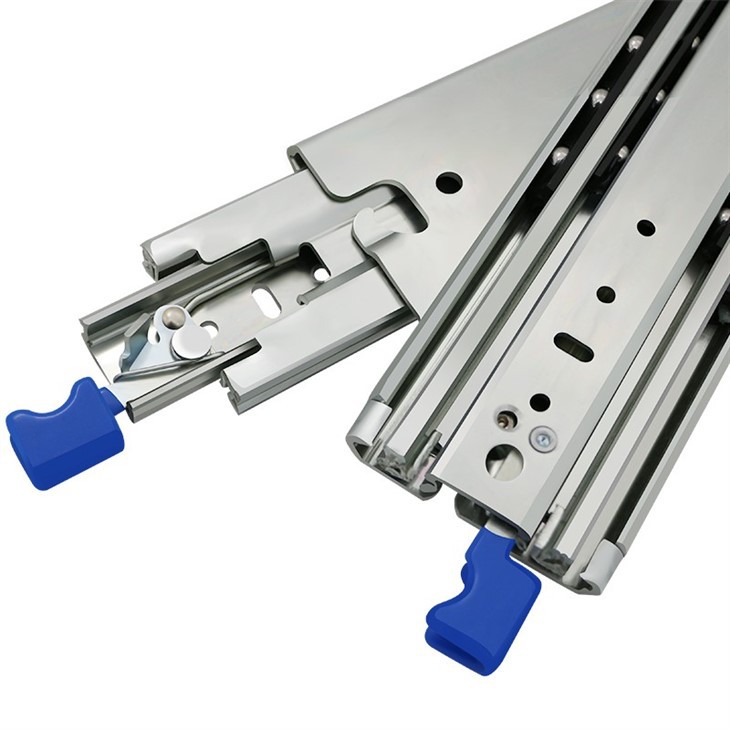

New locking design. You need to press the blue button to open or close the drawer. It will lock when a full extension or closed.

Constructed with 2.5 mm thickness cold-rolled steel. By using 5% salt spray for 48 HRS

The ball-bearing action can create a quiet environment at work.

Nylon buffer can reduce the direct contact between the outer and the inner channel.



Therefore, we have introduced advanced technology into the production process, making the assembly line operations more orderly, and greatly improving production efficiency and product quality.
